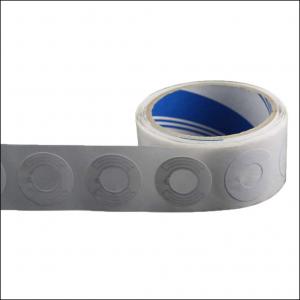

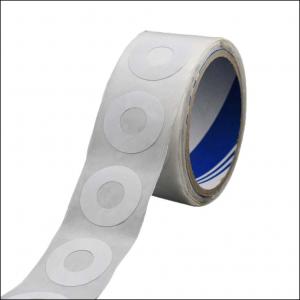

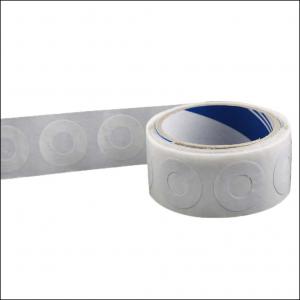

SH-I0401 UHF RFID Disc Tag

UHF RFID disc tag is specially designed for the management of disc anti-counterfeiting, inventory and location. Suitable for the management of press, library, database and confidential documents.

· Basic parameters
ModelSH-I0401
TypeUHF Passive RFID Tag
Frequency860~960MHz
Standards/ProtocolsEPC CLASS1 GEN2, ISO 18000-6C
· Physical parameters
Size35*35mm=1.378*1.378inch(Customized design)
Inlay MaterialPET+AL
Outer MaterialPaper/PET
· Performance Parameters
Memory SizeUp to 512 bit
ChipAlien Higgs-3/ Alien Higgs-4
Operating ModeR/W
Reading Distance0-1M (Related to reader performance and working environment)
· Environmental parameters
Operating Temp-20℃~+50℃
Storage Temp-40℃~+100℃
· Specific applications
ApplicationsDisc; database; press; etc.
· Packaging and delivery
Package2000pcs/roll (Customized design)


Applications:



1. Self-management library

   1) Borrow and return books by reader themselves

   2) Rapid inventory

   3) Security Access Control System


2. Intelligent document management

   1) High performance

    Could read tag information efficiently, accurately, reliably and completely with a severe environment (For example: in a small file cabinet)

   2) Fast processing speed

    Do not have to scan the tags directly while obtaining data. Fast read/write speed.

   3) Good safety

    RFID tag has its unique application and memory area. Each tag has its unique TID, which could not be changed.

   4) Reliable regulate function

    Using UHF RFID smart document management system greatly improves the efficiency of file management, achieving the intelligent monitoring of the stuff who get the exact file.
