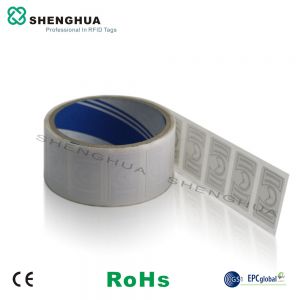

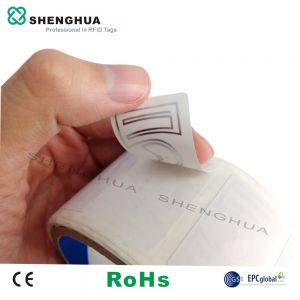

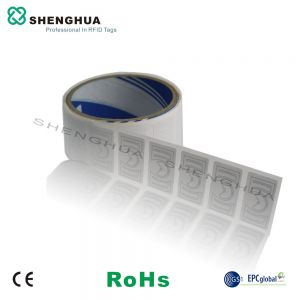

SH-F3622 UHF RFID Self-adhesive Label Anti Transfer For Warehouse Logistics Management

●Antenna Size 32*18mm , Die Cutting Siza 36*22mm
● Chip: ALIEN H3 / H4

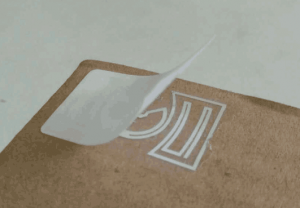

●Anti-transfer Antenna Technology
● Made Into Anti-transfer Label and Fragile Label
● Unique Identification (TID)
● Customization: Color Printing, Barcode, QR Ccode, Encoding (EPC, USER), Access Control, Extended EPC

· Basic parameters
ModelSH-F3622
TypeUHF passive RFID tags
Frequency860~960MHz
Standards/ProtocolsEPC CLASS1 GEN2, ISO 18000-6C
· Physical parameters
Size36*22mm=1.42*0.87inch(Customized Design)
Inlay MaterialPET+AL
Outer MaterialCopper paper / PET / PVC /Thermal paper
· Performance Parameters
Memory SizeUp to 512bit
ChipAlien Higgs-3/ Alien Higgs-4
Operating ModeR/W
Reading Distance3M(Related to reader performance and working environment)
· Environmental parameters
Operating Temp-20℃~+50℃
Storage Temp-40℃~+100℃
· Specific applications
ApplicationsAviation, logistics, warehousing, retail, clothing, medical, anti-counterfeiting etc.
· Packaging and delivery
Package2000pcs/roll
