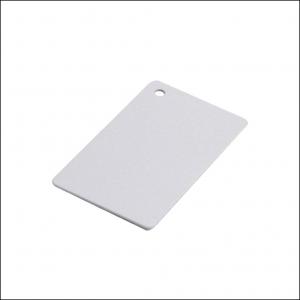

SH-I5230 UHF HF RFID Small Non-standard Smart PVC Card Plastic Card

SH-I5230 can package into wet inlay, standard card or the other heterotypic tags, achieving the needs of industry, and application. It is convenient to stick with the characteristics that are widely applied to aviation, warehousing, retail, clothing, medical, anti-counterfeiting and other fields. Our excellent R&D team can customize the design of high-performance tag antenna with special specification.

· Basic parameters
TypeUHF Passive RFID Tag
Standards/ProtocolsEPC CLASS1 GEN2, ISO 18000-6C
· Physical parameters
Size52*30*0.8mm=2.05*1.18*0.31 inch (Customized design)
Inlay MaterialPET+AL
Outer MaterialPaper/PET/PVC/Thermal paper
· Performance Parameters
Memory SizeUp to 512bit
ChipAlien Higgs-3/ Alien Higgs-4
Operating ModeR/W
Reading Distance0~2m (Related to reader performance and working environment)
· Environmental parameters
Operating Temp-20℃~+50℃
Storage Temp-40℃~+100℃
· Specific applications
ApplicationsAviation, logistics, warehousing, retail, clothing, medical, anti-counterfeiting etc.
